Characteristics,Application range and Field ofthe AFE Series Casing
Oscillators
Characteristics of the AFE Series casing Oscillators:
1. The design of trivalve clamp, the casing automatically has good
performance to thecenter, and the holding force (embrace force) is
large.
2.The mechanical and structural optimization desian is carried out
by computer simulationunder construction conditions, which avoids
the phenomenon of moving arc interferenceand hoisting in the
working process
3. The motor and diesel pump station system configuration,
customers can chooseaccording to their own needs.
4. Manual and remote control operation mode, simple and convenient
to switch each other.
Application area:
Urban subway foundation,deep foundation pit retaining occlusal
pile,urban renovationpull-out pile and remove obstacle pile,
railway, port, road bridge, rivers, lakes, high-risebuildings,
hydropower and water conservancy construction bored pile, special
purposebored pile.
Applicable stratum :
All strata in the construction of the rotary driling rig. lt is
especially suitable for complexstrata where mud such as pebble,
silt, quicksand, silt, fragmentation and karst cavedevelopment,
backfill, swamp, lake, River and so on can not normally protect
walls.

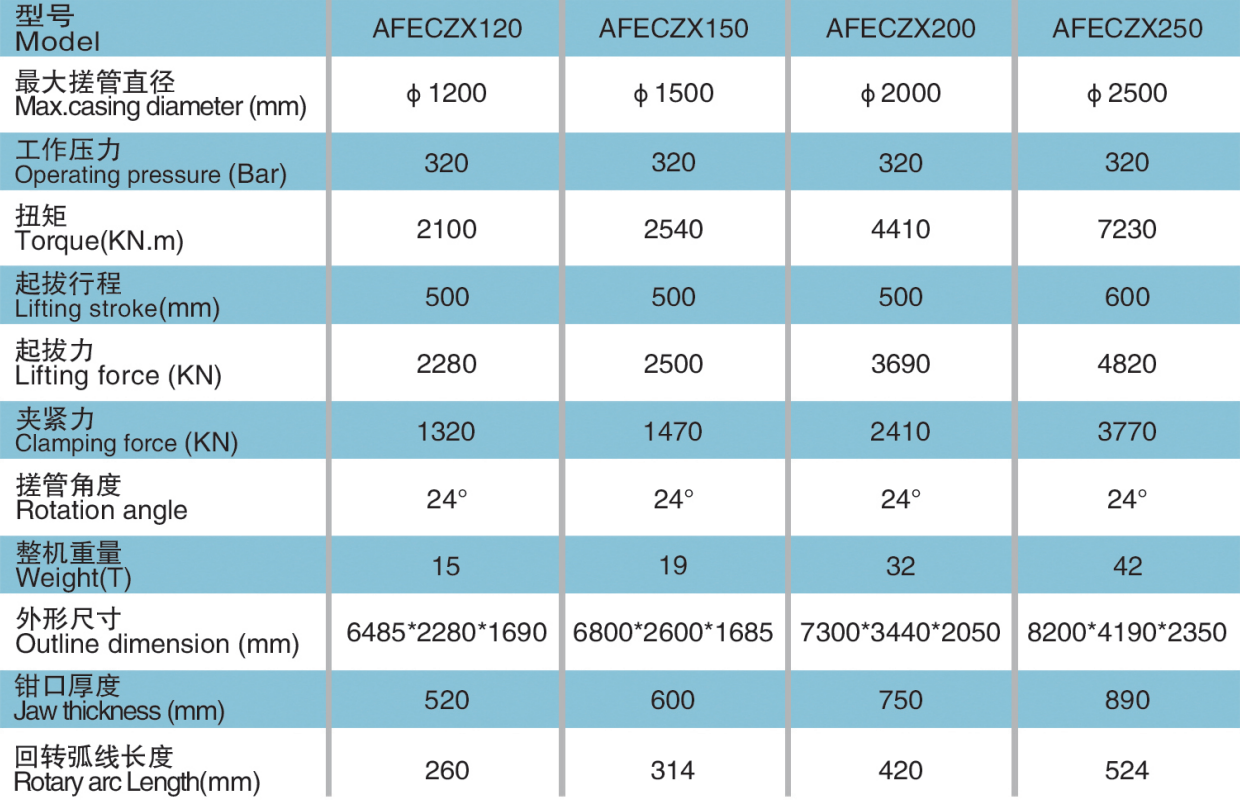

Technical Data of the AFECZX Casing Oscillators:
Detail display of the Casting Oscillator:
Construction methods ( AFECZX Casing Oscillators+Crawler Crane ):
1.Connection the casing oscillator in the engineering crawler crane
and installationthe first casing.
2.The casing oscillator press the casing andgrab the soil in the
casing.
3.Connecting the next casing,grab the soilcontinuous.
4.Drilling into a predetermined deepthand installation the
reinforcing cage.
5.Pouring concrete.
6.Pulling up the casing and movingthe casing oscillator.
Construction example:
